Features

1.Compact and economical design

2.For gas or liquid service

3.Piston sensed for high reliability and long service life

4.Standard version includes 1/4"""" NPTF gauge ports

5.Brass or Stainless Steel construction

6.Adjustable stop limits maximum outlet pressure

Specifications

Maximum Inlet Pressure：400 and 3500 psig / 27.6 and 241 bar

Outlet Pressure Ranges ： 1-25, 1-50, 2-100, 2-250, 5-500, 5-600 psig

                                           0.07-1.7, 0.07-3.4, 0.14-6.9, 0.14-17.2, 0.35-34.5, 0.35-41.4 bar

Material：Body, Piston: 316 Stainless Steel or Brass

                 Bonnet: 300 Series Stainless Steel or Brass

                 Seats: Vespel

                 O-Ring: Viton

                 Filter (40 micron): 316 Stainless Steel

The  Related Products:

TESCOM Model Recommendations:

Pressure Reducing Valves:

26-1765-24-247

26-2091A24S272

44-2263-241

44-2263-241 (duplicate entry)

44-2260-942-151

44-4660S94-018

44-2263-242

26-1065-24

26-1766-26

26-1064-24

26-1062-24

26-1063-24

44-1123-24

26-1765-24-071

44-1163-24

54-2062D24

Control Valves:

44-1116-24

26-1065-24-760

44-2263-241

26-1061-24

26-1765-26

26-1764-26

26-1766-26

44-1767-24

SG1P6162

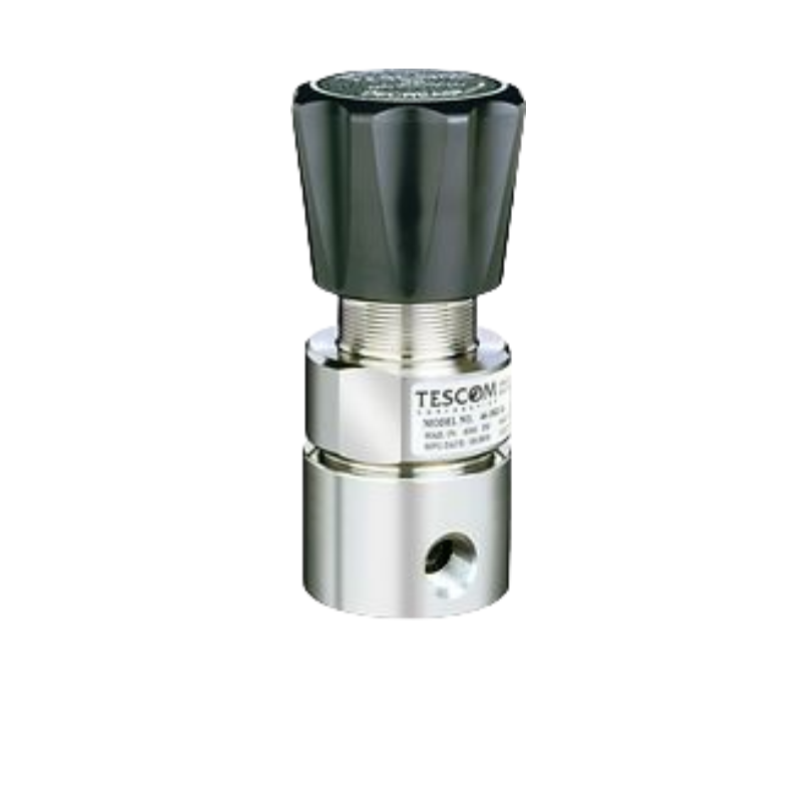

Picture show:
