Features

1.Fast, Positive Switching Action

2.Full Adjustablility

3.Three-Way or On/Off Action

4.Automatic or Manual Reset

Specifications

Available Configurations

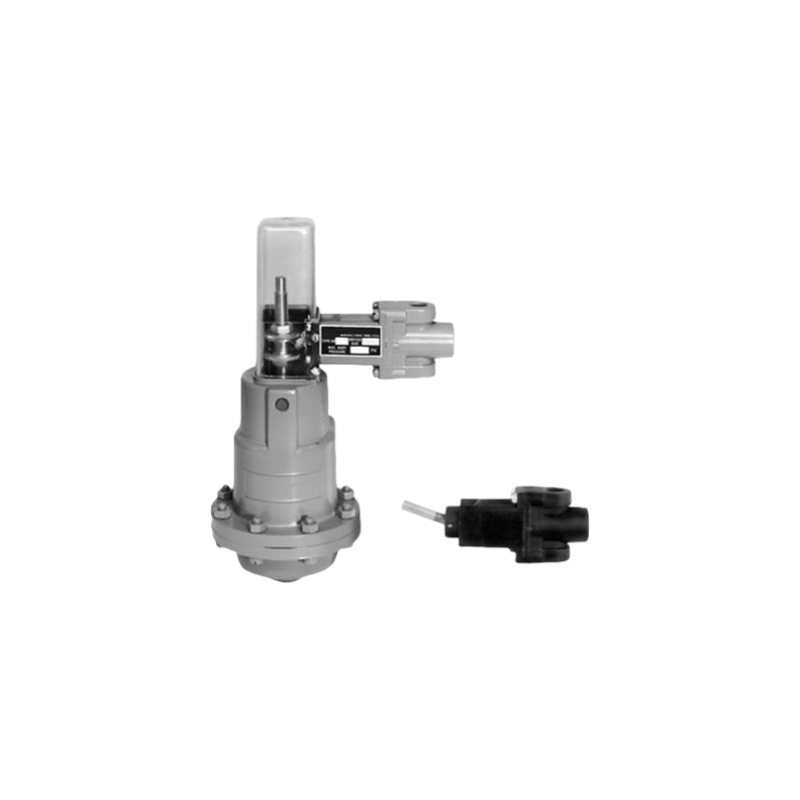

68-2: Manual three-way switching valve

168: Pneumatic snap acting three way switching valve

168H Pneumatic high pressure snap acting three way switching valve

Outlet Pressure Range

68-2: Manual switching

168: 2 to 60 psig / .14 to 4.1 bar

168H: 35 to 150 psig / 2.4 to 10.3 bar

Temperature Capabilities

-10 to 150°F / -23 to 66°C

Approximate Weight

68 Series: 0.5 Pound / 0,23 kg

168 Series: 3 Pounds / 1 kg

168H Series: 5 Pounds / 2 kg

Pictures show
