Fisher Type 1367 High-Pressure Instrument Supply System

Fisher Type 1367 high-pressure instrument supply system takes a pressure of up to 2000 psig / 138 bar and reduces it to a controlled pressure to be used for supplying a pneumatic instrument. This system consists of filters, regulators, and relief valves.

Online consultation

Details

Features

Regulation and Overpressure Protection in One Complete Package
Installation Flexibility
Capability for Continuous Moisture Removal

Specifications

Outlet Pressure Range

5 to 90 psig / 0.34 to 6.2 bar

Pressure Registration

Internal

Temperature Capabilities

-20 to 150°F / -29 to 66°C

Approximate Weight

12 pounds / 5 kg

Additional Technical Data

For additional technical information, contact your local Sales Office or refer to technical documentation.

Pictures show

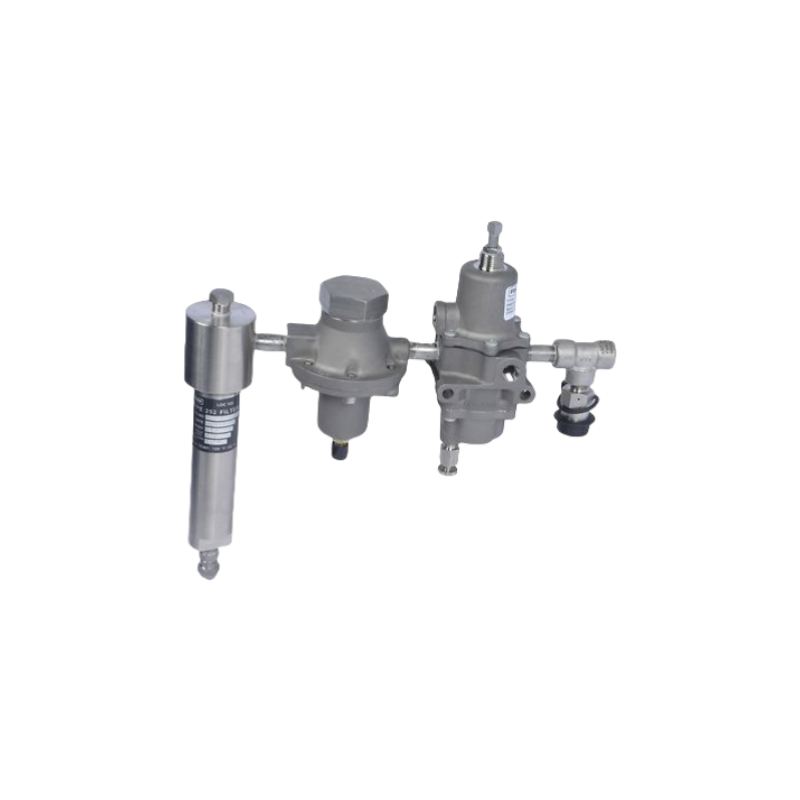

Fisher Type 1367 High-Pressure Instrument Supply System
