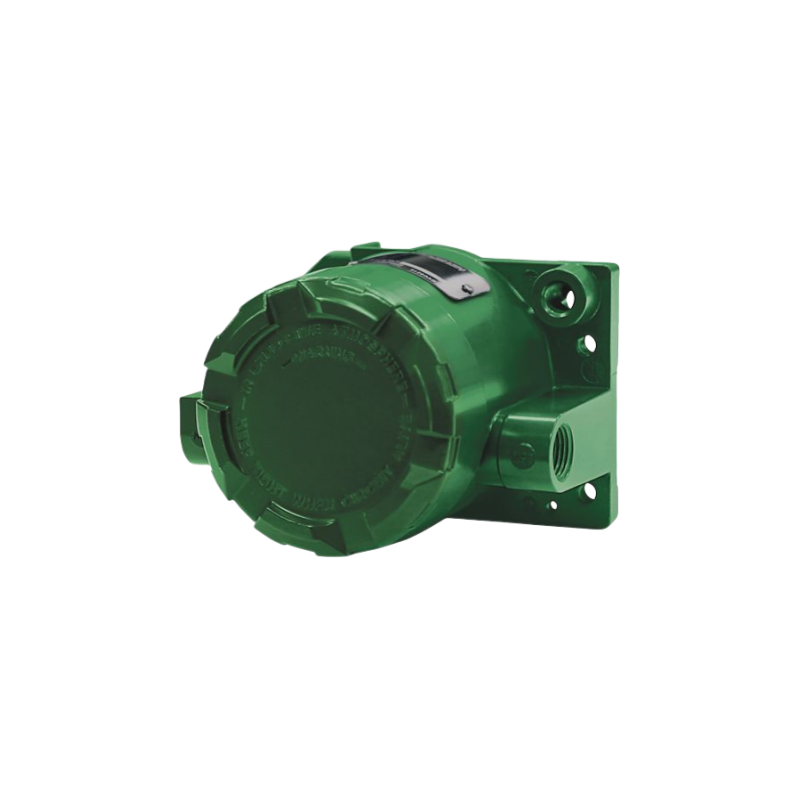

Fisher FIELDVUE 4400 Digital Position Transmitter
A Fisher FIELDVUE 4400 digital position transmitter senses the position of rotary or sliding-stem valves, vents, dampers, or other devices. It provides a precise non-contact feedback to indicate equipment position with a percent (%) of span plus on/off indication. The 4400 provides 4-20 mA position feedback, is SIL 2 capable, and has two 1-amp NAMUR design solid-state limit switches
Features
1.Simple Setup
Local push button calibration
2.Proven Reliability
Linkageless non-contact position sensing to reduce mechanical wear
3.Valve Performance Diagnostics
Cycle count
Time to open/close
Travel accumulator
Dwell time
Current valve position
Stroke time
Specifications
Communication Protocol
4-20mA HART
Data Interface
Wired
Measurement Type
Position
Diagnostics
Yes
Mounting Type
Non-Mechanical, Contactless
Power Source
Loop Powered (2-Wire)
Other Configurations
Contact your local Emerson sales office to learn about additional specifications or options for this product.
Pictures show
Application area
能源
化工
矿业
医药
