Special features

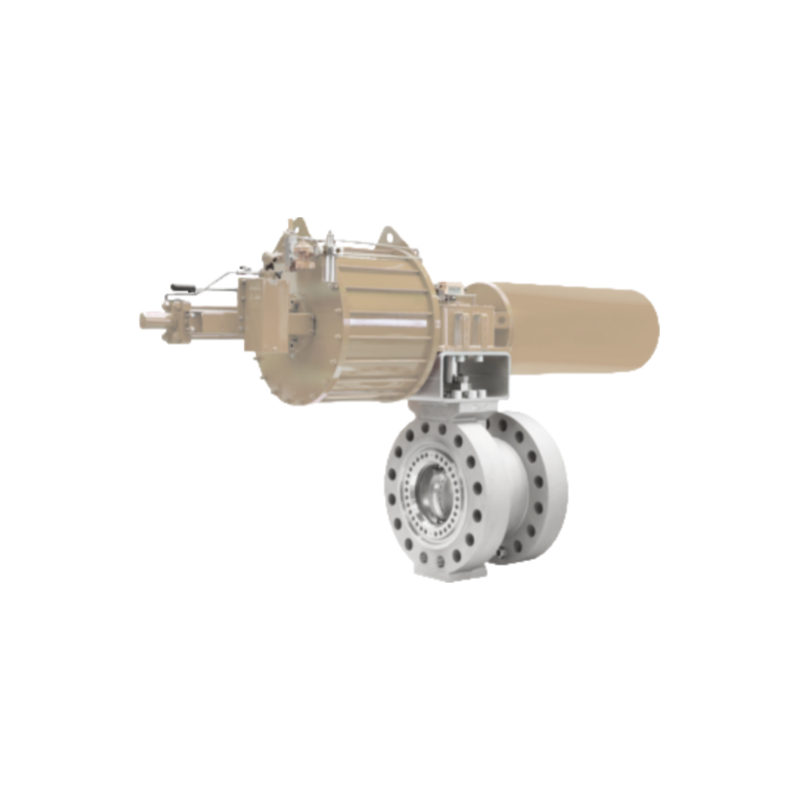

1.Triple-eccentric control and shut-off butterfly valve

2.Wafer, lug, double flanged, or welding ends

3.Metal or soft seated

4.Leakage class VI acc. to ANSI FCI 70-2/IEC 60534-4 (EN 12266-1 Class A)

5.Designed acc. to EN 12516, ANSI B16.34, and API 609

Specification

VALVE STYLE

Butterfly valve

USAGE

Throttling service

On/off service

Pressure swing adsorption (PSA)

Low-pressure service

High-pressure service

Throttling service

On/off service

Low-pressure service

VERSION

ANSI

MEDIUM TEMPERATURE

-60 to 400 °C / -76 to 752 °F

SUPPLY

Pneumatic

VALVE SIZE

NPS 3 to NPS 96

PRESSURE RATING

Class 150 to Class 2500

LINING

without
