Special features

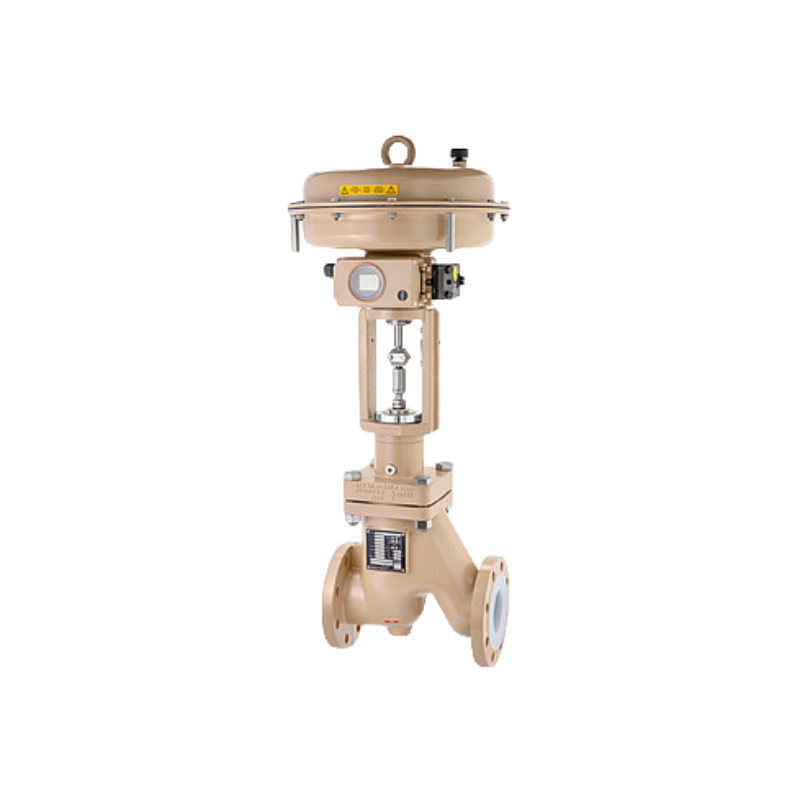

1.Consisting of globe valve and actuator

2.3 to 5 mm PFA lining

3.Modular design for easy installation

4.Valve trims made of special materials

5.Backup PTFE V-ring packing

6.PTFE bellows seal as standard

7.Leakage requirements according to DIN EN 12266, API 598 or ANSI FCI 70-2-2006

Specification

VALVE STYLE

Goble valve

USAGE

On/off service

Throttling service

Low-pressure service

VERSION

ANSI

MEDIUM TEMPERATURE

-10 to 200 °C / 14 to 392 °F

SUPPLY

Pneumatic

VALVE SIZE

NPS ½ to NPS 6

PRESSURE RATING

Class 150

LINING

PFA
