Special features

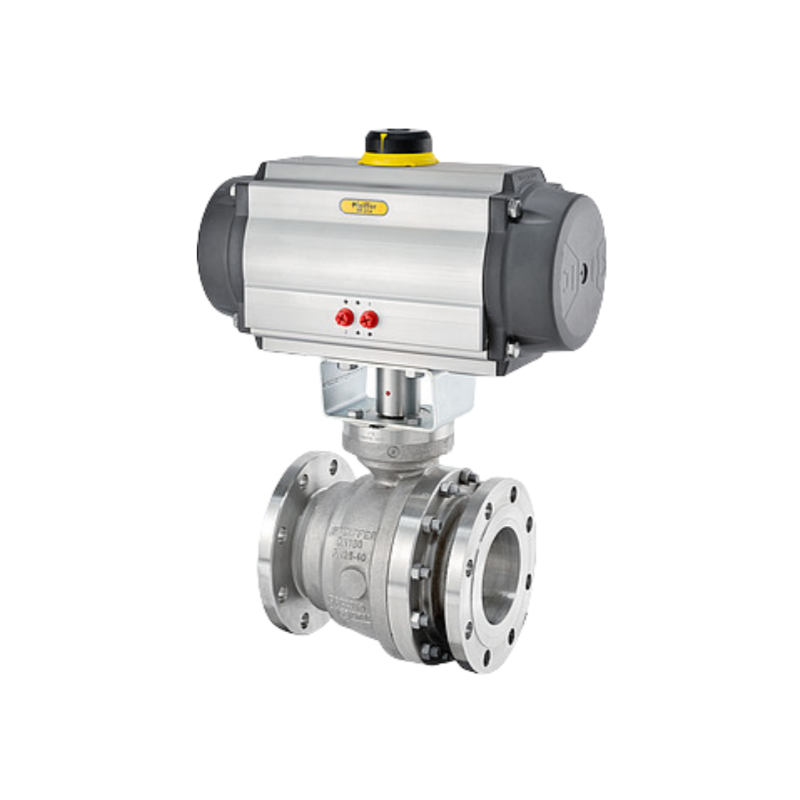

1.Consisting of ball valve and actuator

2.Steel or stainless steel ball valve

3.Corrosion-resistant materials to withstand corrosive process media

4.DIN ISO 5211 interface as standard

5.PTFE V-ring packing loaded by disk springs

6.TA Luft

7.Blow-out-proof shaft

8.Fire-safe according to API 607

9.Face-to-face dimensions according to DIN EN 558 or ASME B16.10/API 6D

10.Flanges according to EN 1092 or ASME B16.5/API 6D

11.Leakage requirements according to DIN EN 12266 or API 598

Specification

VALVE STYLE

Ball valve

USAGE

Low-pressure service

High-pressure service

On/off service

VERSION

ANSI

MEDIUM TEMPERATURE

-196 to 550 °C / -320.8 to 1022 °F

SUPPLY

Pneumatic

VALVE SIZE

NPS ½ to NPS 32

PRESSURE RATING

Class 150 to Class 900

LINING

without
