Special features

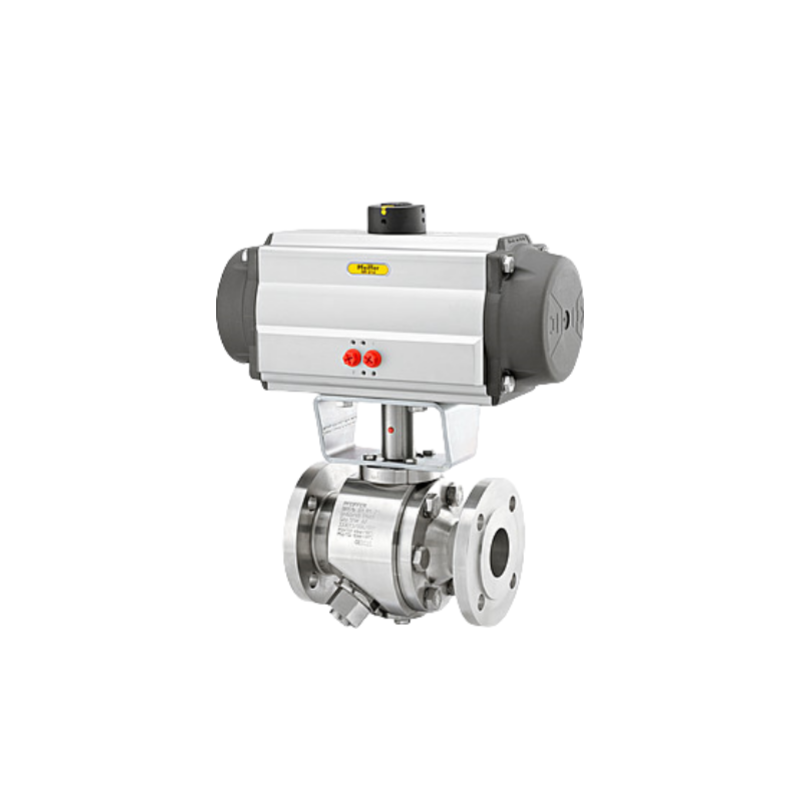

1.For block and bleed application

2.Consisting of ball valve and actuator

3.Body, ball and control shaft made of stainless steel, nickel, titan and other non-corrosive materials

4.Sealing rings spring loaded, both sides

5.DIN ISO 5211 interface as standard

6.Straight-through flow path

7.Blow-out-proof control shaft

8.Replaceable PTFE seals

9.PTFE V-ring packing loaded by disk springs

10.TA Luft

11.Face-to-face dimensions according to DIN EN 558, Series 1

Specification

VALVE STYLE

Ball valve

USAGE

Low-pressure service

On/off service

VERSION

ANSI

MEDIUM TEMPERATURE

-60 to 200 °C / -76 to 392 °F

SUPPLY

Pneumatic

VALVE SIZE

NPS ½ to NPS 8

PRESSURE RATING

Class 150 to Class 300

LINING

without
