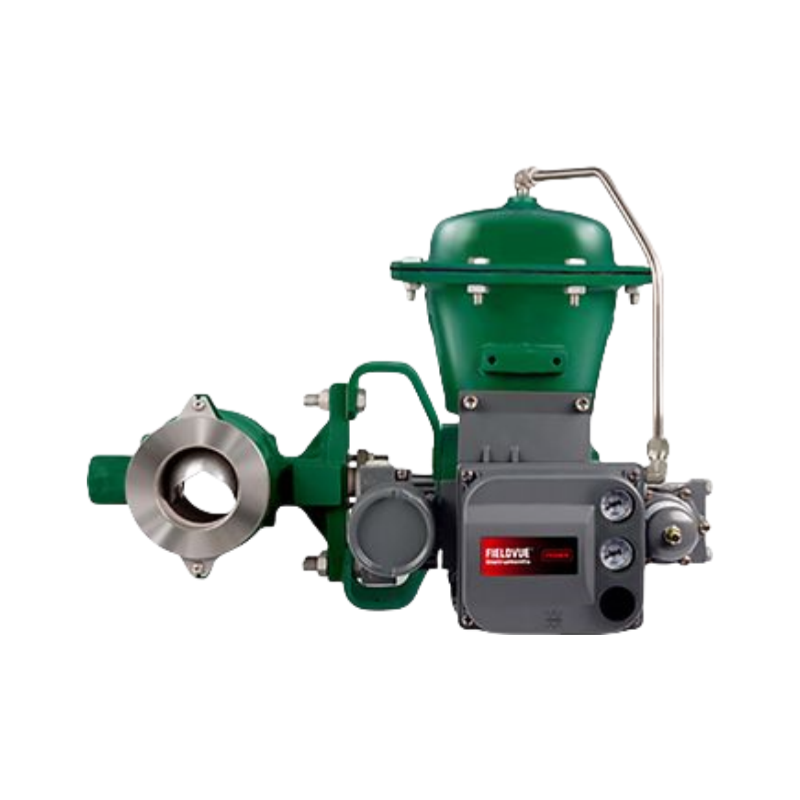

FEATURES

1.Available with flangeless or flanged body style for flexible installation.

2.The solid HD ball seal construction provides long service life in demanding applications.

3.Precise contouring of the Vee-Ball provides a modified equal percentage flow characteristic.

4.Materials are available for applications involving sour liquids and gases. These constructions comply with NACE MR0175-2002, MR0175-2003, MR0103, and MR0175/ISO 15156.

5.Ball seal inspection and replacement is done at the valve body inlet, without removing the actuator or disassembling the valve.

6.The one-piece valve body improves structural integrity of the pressure boundary by eliminating leak paths that could be caused by the gaskets in two-piece, bolted valve designs.

SPECIFICATIONS

Certifications

SIL capable, ATEX, CUTR, PED, CRN, Fugitive Emission, NACE

Critical Service

Noise Abatement, Cavitation, Dirty Service, Erosive, Low Flow, General Service

Flow Characteristics

Equal Percentage

Material

Carbon Steel, Stainless, Duplex, Alloy

Operating Temperature

Standard Temperature

Pressure Class

ASME

Process Connection Type

Flanged

Shutoff Class

Class III (FCI 70-2), Class IV (FCI 70-2), Class VI (FCI 70-2)

Valve Size

NPS 1, NPS 1-1/2, NPS 2, NPS 3, NPS 4, NPS 6, NPS 8, NPS 10

Valve Size Standard

NPS
