FEATURES

1.Self-centering seat ring and rugged plug allow forward or reverse flow with tight shutoff in either flow direction.

2.Integral valve body flanges mate with many different classes of pipeline flanges, satisfying a variety of piping requirements.

3.Streamlined flow passages, rugged components, and a wide choice of erosion-resistant trim materials all promote long, dependable service life in erosive applications.

4.Path of eccentric plug minimizes contact with seat ring when opening, reducing seat wear and friction.

5.Specially selected trim materials and body coatings help to withstand oil sands, furnace feed, and other highly erosive applications.

6.Durable, solid metal or VTC seat ring and valve plug shutoff tightly without deforming plug arms or employing thin ball seals.

SPECIFICATIONS

Certifications

SIL capable, ATEX, CUTR, PED, CRN, Fugitive Emission, NACE

Critical Service

Noise Abatement, Cavitation, Dirty Service, Erosive, Low Flow, General Service

Flow Characteristics

Linear

Material

Carbon Steel, Stainless, Duplex, Alloy

Operating Temperature

Standard Temperature

Pressure Class

PN, ASME

Process Connection Type

Flanged

Shutoff Class

Class IV (FCI 70-2)

Valve Size

NPS 1, NPS 1-1/2, NPS 2, NPS 3, NPS 4, NPS 6, NPS 8

Valve Size Standard

NPS, DN

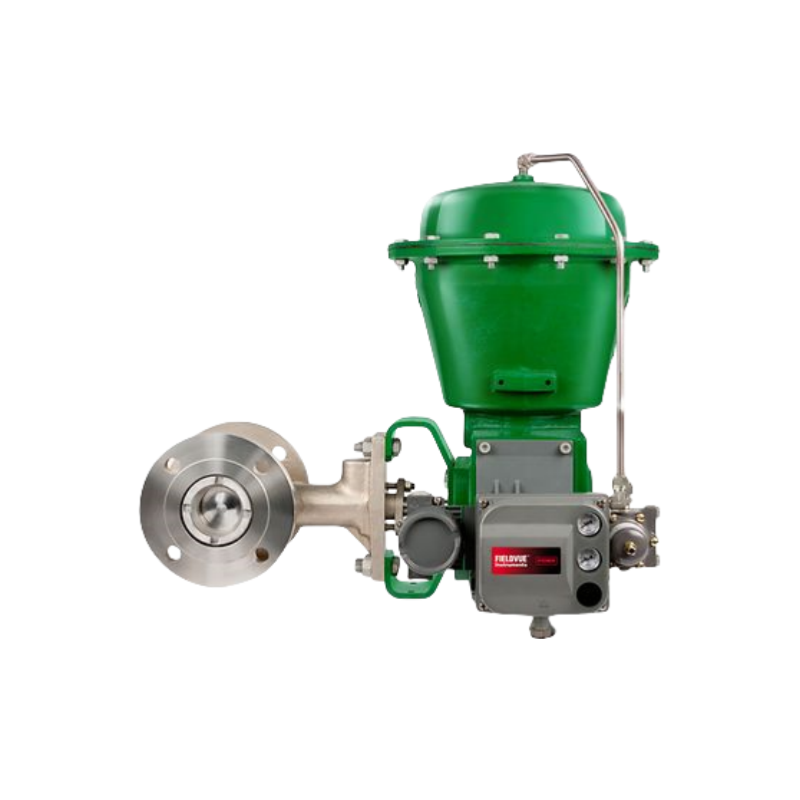

Pictures show
