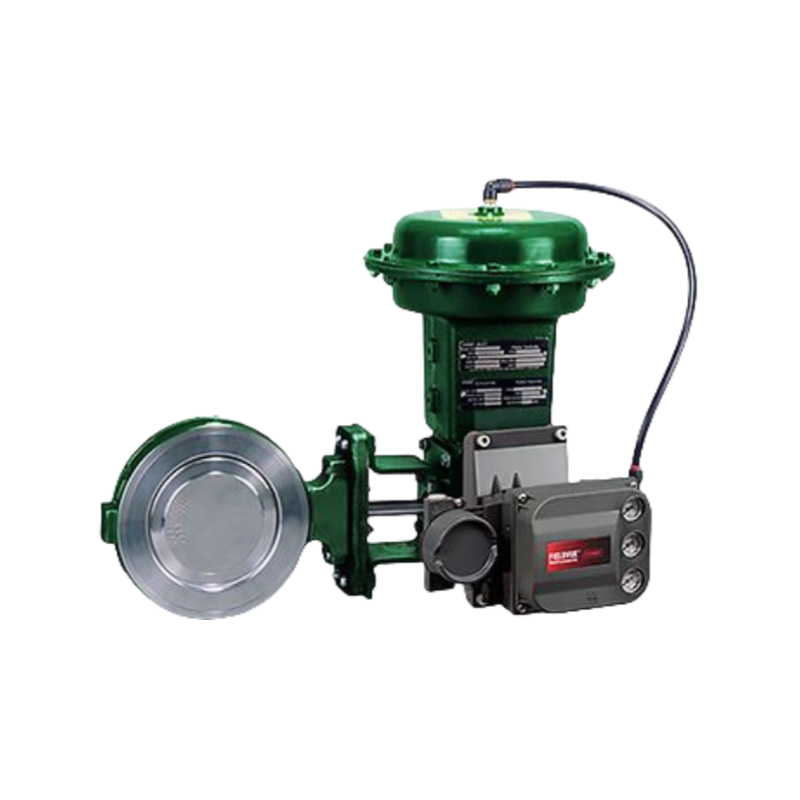

FEATURES

1.The eccentrically-mounted disk design provides an approximate linear flow characteristic and can be used for throttling or on/off control applications through 90 degrees of disk rotation.

2.Trim and bolting materials are available for applications involving sour service. These constructions comply with the recommendations of NACE MR0175-2002.

3.The optional ENVIRO-SEAL™ packing system is designed with improved sealing, guiding, and loading force transmission. The ENVIRO-SEAL packing system can control emissions to below the Environmental Protection Agency limit of 100 ppm for valv

SPECIFICATIONS

Certifications

PED, CRN, Fugitive Emission, NACE, ATEX, CUTR, Fire Safe

Critical Service

General Service

Flow Characteristics

Linear

Material

Carbon Steel, Stainless, Alloy

Operating Temperature

Standard Temperature, High Temperature

Power Source

Electric, Hydraulic, Pneumatic, Lever, Gear, Electro-Hydraulic

Pressure Class

ASME

Process Connection Type

Flanged, Single Flanged, Lugged

Seat / Seal Type

Metal, Soft

Shutoff Class

Class IV (FCI 70-2), Class VI (FCI 70-2)

Standards

B16.34

Stem

Live Loaded, Adjustable Packing

Valve Size

NPS 3, NPS 4, NPS 6, NPS 8, NPS 10, NPS 12

Valve Size Standard

NPS
