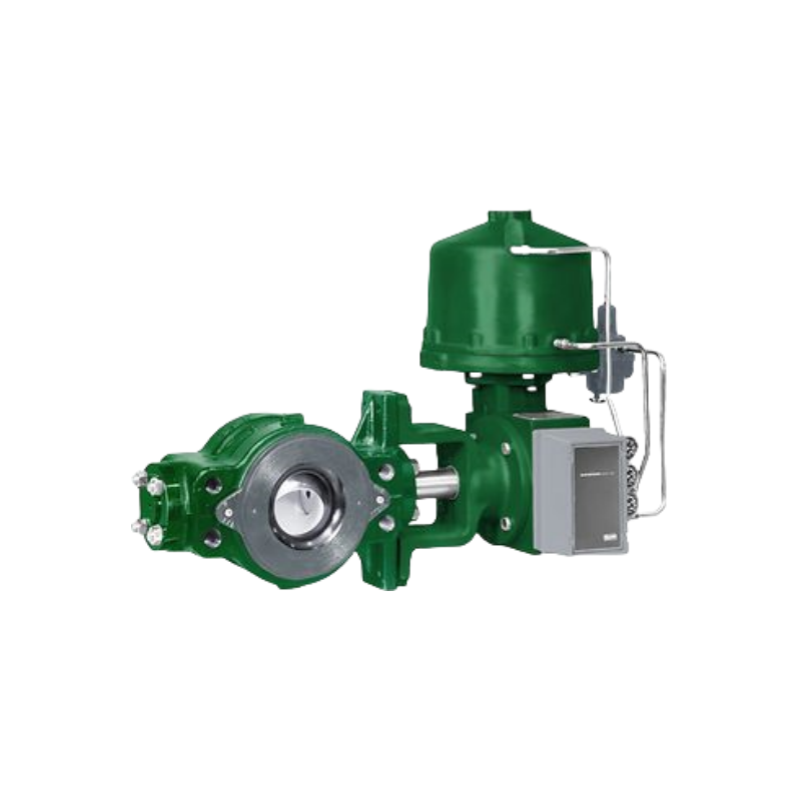

FEATURES

1.Tapered-polygon ball-to-shaft connection and clamped splined actuator connection remove lost motion or deadband from the drive train.

2.Reduced ball port design provides a modified equal percentage flow characteristic.

Materials are available for applications handling sour service.

3.Pressure-balanced drive shaft design with PTFE-lined bearings and pressure-assisted shaft sealing arrangement provides for a long life of reliable service.

4.Two-piece ball and shaft assembly allows for complete trim overhaul; parts replacement is kept to a minimum.

SPECIFICATIONS

Certifications

CUTR, PED, CRN, Fugitive Emission, NACE

Flow Characteristics

Linear

Material

Carbon Steel, Stainless, Duplex

Operating Temperature

Standard Temperature

Pressure Class

ASME

Process Connection Type

Flanged

Shutoff Class

Class IV (FCI 70-2)

Valve Size

NPS 4, NPS 6, NPS 8, NPS 10, NPS 12, NPS 16, NPS 20, NPS 24
