FEATURES

1.This valve will meet your actuator needs with a choice of splined, square, or keyed shaft connections.

2.The pressure-assisted seal design provides tight shutoff and permits the use of smaller, less expensive actuators in applications requiring full ASME B16.34 shutoff capabilities.

3.The optional ENVIRO-SEAL™ packing systems are designed with very smooth shaft surfaces and live-loading to provide improved sealing, guiding, and loading force transmission.

4.Trim and bolting materials are available for applications involving sour liquids and gases.

5.The valve body self-centers on the line flange bolts as a fast, accurate means of centering the valve in the pipeline.

6.Seal retainer screws are located so there is no interference with the sealing function.

SPECIFICATIONS

Certifications

SIL capable, PED, CRN, Fugitive Emission, NACE, ATEX, CUTR, Fire Safe

Critical Service

General Service

Flow Characteristics

Linear

Material

Carbon Steel, Stainless, Alloy

Operating Temperature

Standard Temperature, High Temperature

Power Source

Electric, Hydraulic, Pneumatic, Lever, Gear, Electro-Hydraulic

Pressure Class

ASME

Process Connection Type

Flanged, Single Flanged, Double Flanged, Lugged

Shutoff Class

Class IV (FCI 70-2), Class VI (FCI 70-2)

Stem

Live Loaded, Adjustable Packing

Valve Size

NPS 3, NPS 4, NPS 6, NPS 8, NPS 10, NPS 12, NPS 14, NPS 16, NPS 18, NPS 20, NPS 24

Valve Size Standard

NPS

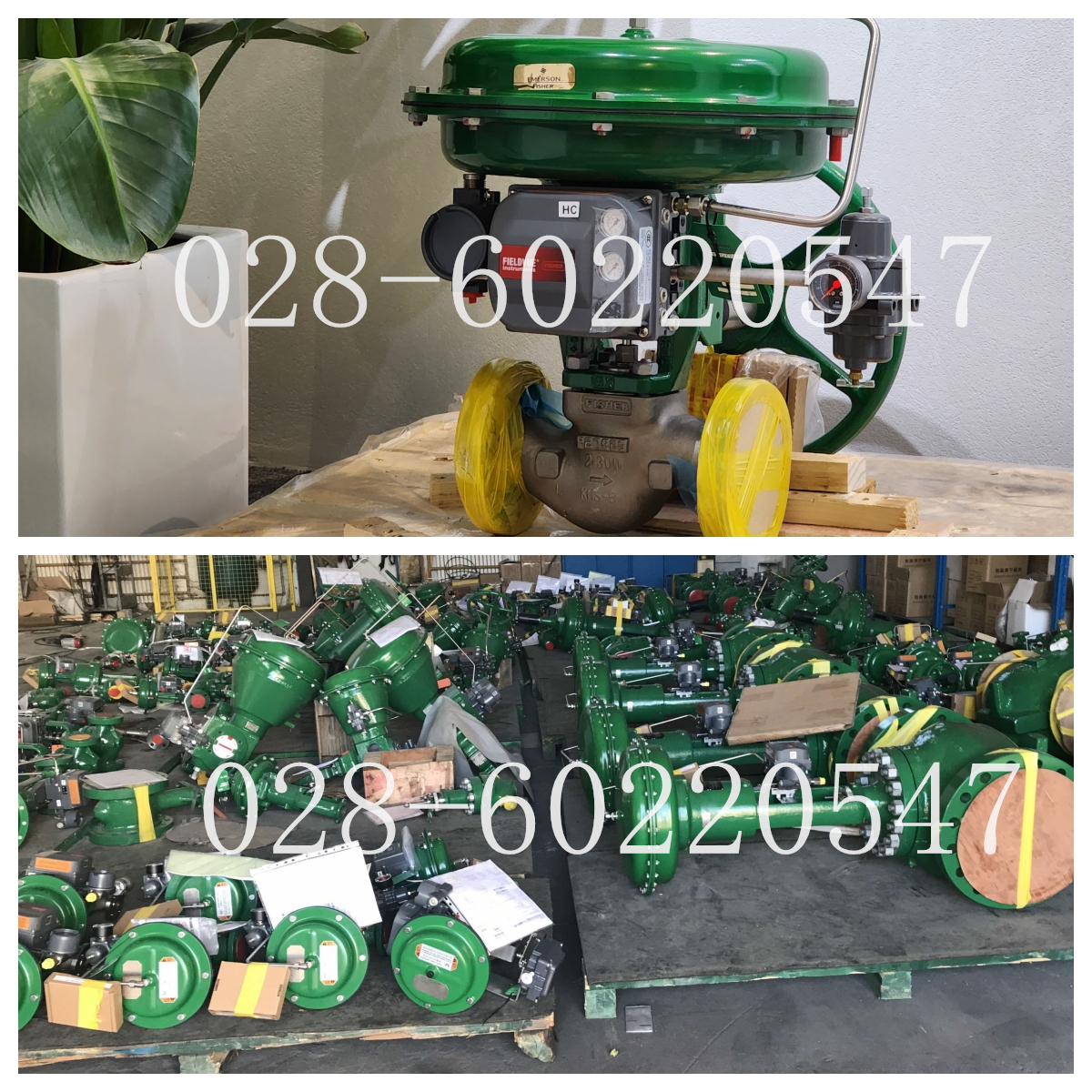

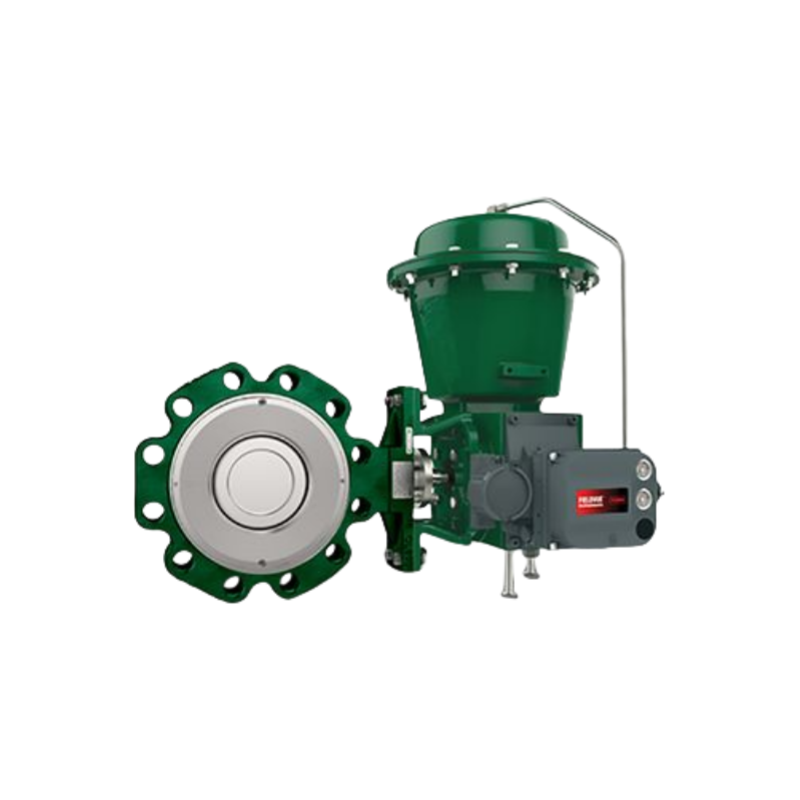

Pictures show
