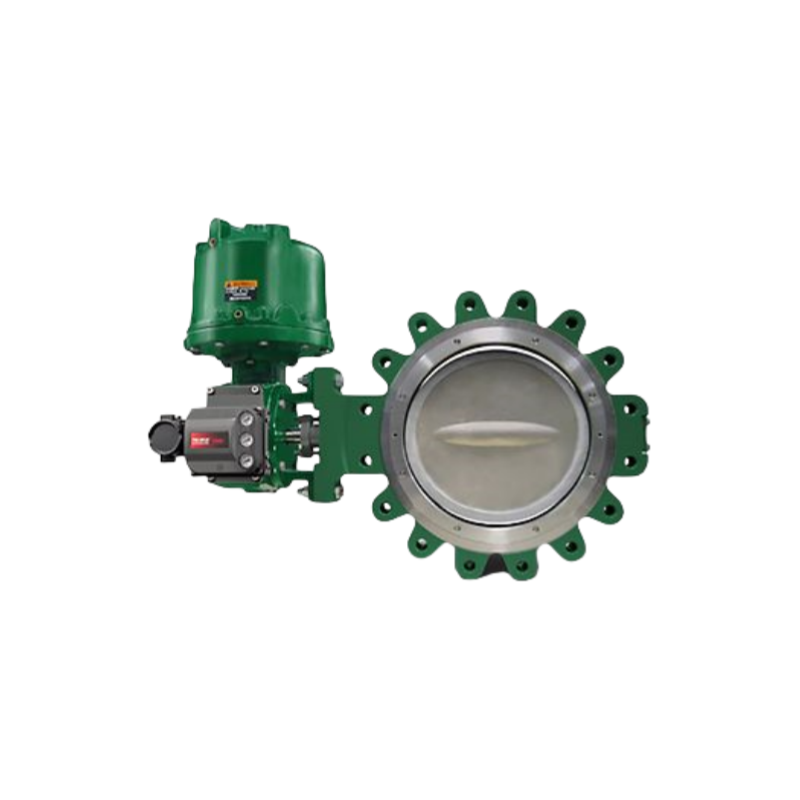

FEATURES

1.The pressure-assisted seal design provides tight shutoff against the full pressure rating of the specified valve.

2.The anti-blowout gland fits securely over the valve shaft, which has been turned down to form a circumferential shoulder that contacts the anti-blowout gland.

3.A splined end connection on the drive shaft allows lever clamping by most Fisher rotary actuators.

4.Optional keyed shaft is ideal for on/off applications and allows actuator selection flexibility.

5.The optional ENVIRO-SEAL™ packing system is designed with very smooth stem surfaces and live-loading provides improved sealing, guiding, and loading force transmission.

6.The valve body self-centers on the line flange bolts as a fast, accurate means of centering the valve in the pipeline.

SPECIFICATIONS

Certifications

SIL capable, PED, CRN, Fugitive Emission, NACE, ATEX, CUTR, Fire Safe

Critical Service

General Service

Flow Characteristics

Linear

Material

Carbon Steel, Stainless, Alloy

Operating Temperature

Standard Temperature, High Temperature, Cryogenic

Power Source

Electric, Hydraulic, Pneumatic, Electro-Hydraulic

Pressure Class

ASME

Process Connection Type

Flanged, Single Flanged, Double Flanged, Lugged, Wafer

Shutoff Class

MSS SP-61, Class IV (FCI 70-2), Class VI (FCI 70-2), Flow Ring

Stem

Live Loaded, Adjustable Packing

Valve Size

NPS 14, NPS 16, NPS 18, NPS 20, NPS 24

Valve Size Standard

NPS

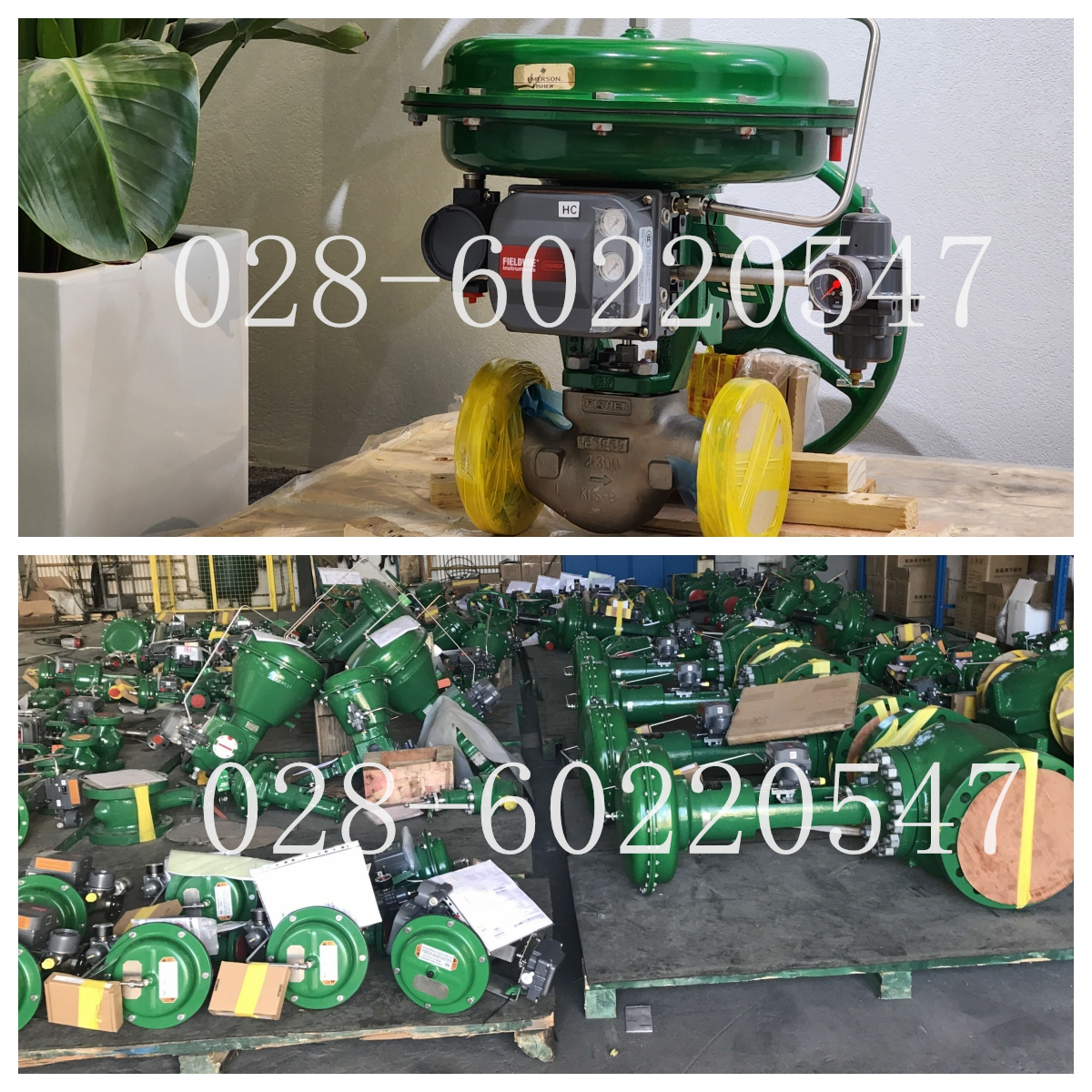

Pictures show
